General information |
|
Model
|

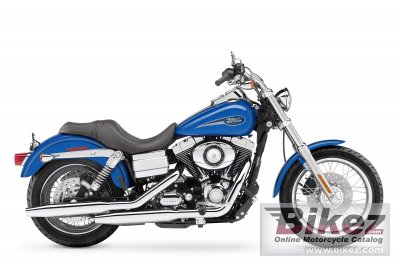

Harley-Davidson FXDL Dyna Low Rider |
|
Year
|
2007 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15795. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.3 ccm (96.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Front tire
|
100/90-H19 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
290.8 kg (641.0 pounds) |
|
Weight incl. oil, gas, etc
|
304.8 kg (672.0 pounds) |
|
Seat height
|
681 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1641 mm (64.6 inches) |
|
Fuel capacity
|
18.16 litres (4.80 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, black pearl, fire red pearl, deep cobalt pearl, Pacific blue pearl (new), pewter pearl (new), white gold pearl (new), two-tone suede blue pearl and vivid black (new), two-tone fire red pearl and black pearl (new), two-tone deep cobalt pearl |
|
Starter
|
Electric |
