General information |
|
Motorcycle name
|

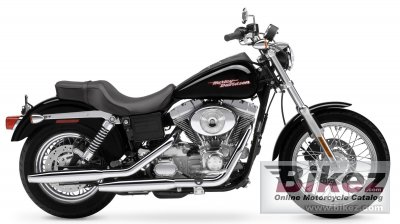

Harley-Davidson FXDI Dyna Super Glide |
|
Year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
67.0 HP (48.9 kW)) |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
|
Top speed
|
160.0 km/h (99.4 mph) |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.0 x 101.6 mm (3.7 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Fuel consumption
|
6.50 litres/100 km (15.4 km/l or 36.19 mpg) |
|
Greenhouse gases
|
150.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular. Rectangular section backbone. |
|
Rake (fork angle)
|
28.3° |
|
Trail
|
104 mm (4.1 inches) |
|
Front suspension
|
39 mm w/ polished aluminum fork triple clamp and dual-rate springs |
|
Rear suspension
|
Coil over shock |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Weight incl. oil, gas, etc
|
301.0 kg (663.6 pounds) |
|
Power/weight ratio
|
0.2310 HP/kg |
|
Seat height
|
713 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2307 mm (90.8 inches) |
|
Overall width
|
673 mm (26.5 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Wheelbase
|
1595 mm (62.8 inches) |
|
Fuel capacity
|
17.80 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, sierra red, impact blue
|
|
Starter
|
Electric |
|
Comments
|
Silver powder-coated engine and polished covers; two-up seating; top-mounted speedometer; nimble handling; Electronic Sequential Port Fuel Injection (ESPFI) as alternative to carburetor. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N Chrome - KN-171C |
|
Brake fluid
|
DOT 5 Silicone |
|
Battery
|
YTX20HL-BS |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Belt teeth
|
133 |
|
Belt width
|
1 1/8 in. |
|
Pulley teeth
|
32/70 (front/rear) |
|
Tire pressure front
|
29 PSI (2 Bar or 200 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
39 mm (1.5 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
