General information |
|
Model name
|

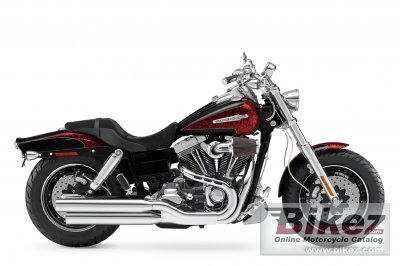

Harley-Davidson FXDFSE CVO Dyna Fat Bob |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1800.0 ccm (109.84 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
133.0 Nm (13.6 kgf-m or 98.1 ft.lbs) @ 6500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Hydraulically actuated, 9-plate wet, with high performance spring |
|
Exhaust system
|
Chrome, 2-1-2 collector exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
140 mm (5.5 inches) |
|
Front suspension
|
49 mm with chrome plated aluminium fork triple clamp |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Fully covered, coil-over shock |
|
Rear wheel travel
|
54 mm (2.1 inches) |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
180/70-B16 |
|
Front brakes
|
Double disc. 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
318.0 kg (701.1 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2312 mm (91.0 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1617 mm (63.7 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Sunrise Yellow Pearl with Platinum Quartz, Black Diamond with Fire Quartz, Denim Granite with Electric Blue Fade |
|
Starter
|
Electric |
|
Comments
|
CVO is HD´s Custom Vehicle Operations. |
