General information |
|
Model name
|

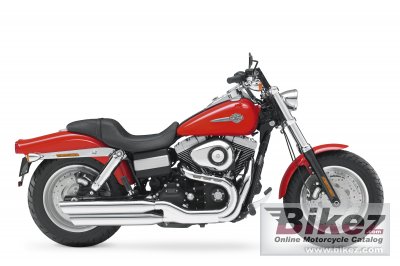

Harley-Davidson FXDF Fat Bob |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
126.0 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, 2-1-2 exhaust pipes with |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
125 mm (4.9 inches) |
|
Front suspension
|
49mm with polished aluminium fork triple clamp |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Fully Covered, Coil-over shock |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
180/70-B16 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
305.0 kg (672.4 pounds) |
|
Seat height
|
690 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2330 mm (91.7 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1620 mm (63.8 inches) |
|
Fuel capacity
|
18.80 litres (4.97 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Scarlet Red, Black Denim, Brilliant Silver Denim, Red Hot Sunglo |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with polished treatment covers; Bobtail rear
fender with chrome supports; Chrome, low-profile fuel tank console;
Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel,
internally-wired drag handlebars; “Teardrop” air cleaner assembly; One-piece,
two-up Dyna® classic seat; Black mirrors; Dual headlight; Tank medallion;
Chrome covered low rear shocks with hand-adjustable preload; Sport front
fender with painted brace supports |
