| General information |
|---|

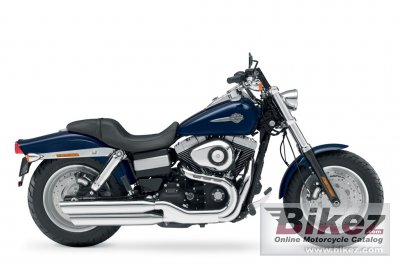

| Model: | Harley-Davidson FXDF Dyna Fat Bob |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Rating: | 71 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 15349. Euro 15785. UK £ 12499. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1687.97 ccm (103.00 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | Air-cooled, Twin Cam 103™ |
| Torque: | 135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500 RPM |
| Compression: | 9.6:1 |
| Bore x stroke: | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system: | Pressurized, dry-sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Multi-plate with diaphragm spring in oil bath |
| Driveline: | Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio. |
| Fuel consumption: | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases: | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, “Tommy Gun” 2-1-2 collector exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle): | 29.0° |
| Trail: | 125 mm (4.9 inches) |
| Front suspension: | 49 mm with polished aluminum fork triple clamp and dual-rate springs |
| Front wheel travel: | 127 mm (5.0 inches) |
| Rear suspension: | Coil-over shock. Mild steel, rectangular tube sections, stamped junctions; MIG welded swingarm. |
| Rear wheel travel: | 54 mm (2.1 inches) |
| Front tyre: | 130/90-B16 |
| Rear tyre: | 180/70-B16 |
| Front brakes: | Single disc. 4-piston fixed. Optional ABS. |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc. 2-piston torque-free floating. Optional ABS. |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Wheels: | Machined, Aluminum Slotted Disc |
| Seat: | One-piece, two-up Dyna classic seat |
| Physical measures and capacities |
|---|
| Dry weight: | 305.3 kg (673.0 pounds) |
| Weight incl. oil, gas, etc: | 320.2 kg (706.0 pounds) |
| Seat height: | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Overall length: | 2,329 mm (91.7 inches) |
| Ground clearance: | 125 mm (4.9 inches) |
| Wheelbase: | 1,618 mm (63.7 inches) |
| Fuel capacity: | 18.93 litres (5.00 gallons) |
| Oil capacity: | 2.80 litres (0.18 quarts) |
| Other specifications |
|---|
| Color options: | Vivid Black, Big Blue Pearl, H-D Orange, Black Denim |
| Starter: | Electric |
| Instruments: | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Electrical: | Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca |
| Factory warranty: | 2 years, unlimited mileage. |
