General information |
|
Model
|

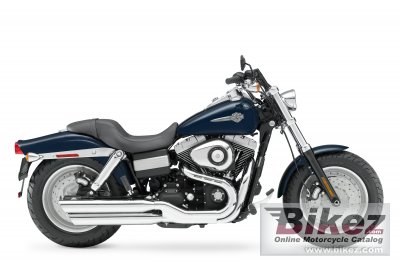

Harley-Davidson FXDF Dyna Fat Bob |
|
Year
|
2008 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 14795. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.3 ccm (96.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
123.4 Nm (12.6 kgf-m or 91.0 ft.lbs) @ 3125 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
4.43 litres/100 km (22.6 km/l or 53.10 mpg) |
|
Greenhouse gases
|
102.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, 2-1-2 collector exhaust w/ dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front tire
|
130/90-B16 |
|
Rear tire
|
180/70-B16 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Rear brakes
|
Single disc. 2-piston torque-free calipers |
|
Physical measures and capacities |
|
Dry weight
|
303.8 kg (669.7 pounds) |
|
Weight incl. oil, gas, etc
|
318.9 kg (703.0 pounds) |
|
Seat height
|
688 mm (27.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2329 mm (91.7 inches) |
|
Ground clearance
|
124 mm (4.9 inches) |
|
Wheelbase
|
1621 mm (63.8 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Black Pearl, Dark Blue Pearl (New), Black Denim, Pewter Denim, Crimson Red Denim (New), Candy Red Sunglo (New) |
|
Starter
|
Electric |
|
Comments
|
Dual headlamps; 130mm front tire; 180mm rear tire; unique tread pattern; full metal jacket rear shocks; FXDWG-style fuel tank; double barrel tommy gun exhaust system.
|
