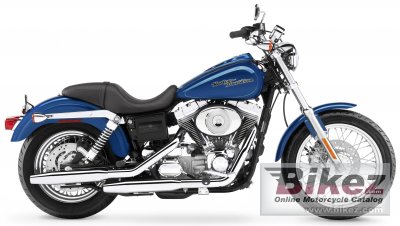

2005 Harley-Davidson FXDCI Dyna Super Glide Custom. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| What could make the classic, bare-boned styling of a Super Glide® motorcycle look even better? It’s simple. Dip it in chrome. That’s the new Super Glide Custom. A clean, custom motorcycle with a maximum shine. Put on some dark shades to check this one out. For starters, your eyes will immediately lock in on the silver powder-coated engine with chrome detailing. |
|
General information |
|
Model
|
Harley-Davidson FXDCI Dyna Super Glide Custom |
|
Year model
|
2005 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1449.0 ccm (88.42 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3400 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Exhaust system
|
Staggered shorty duals |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
28.0° |
|
Front tire
|
100/90-19 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Double disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2300 mm (90.6 inches) |
|
Ground clearance
|
137 mm (5.4 inches) |
|
Wheelbase
|
1595 mm (62.8 inches) |
|
Fuel capacity
|
17.80 litres (4.70 US gallons) |
|
Other specifications |
|
Color options
|
Vivid black, sierra red pearl, black cherry pearl, black pearl, lava red sunglo, glacier white pearl, rich sunglo blue, yellow pearl |
