Harley-Davidson FXDC Dyna Super Glide Custom 20122012 Harley-Davidson FXDC Dyna Super Glide Custom specifications, pictures, reviews and rating |

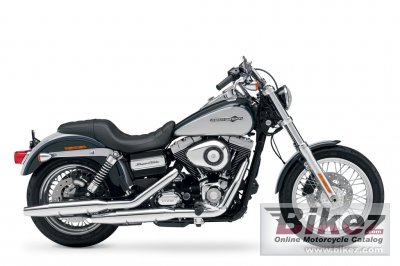

2012 Harley-Davidson FXDC Dyna Super Glide Custom. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| From wheel to wheel, the Super Glide Custom® is a chromed out feast for the eyes, blazing with high-end finishes as it holds true both to its heritage and its custom designation. Its powertrain highlighted by machined cooling fin tips and chrome rocker covers. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson FXDC Dyna Super Glide Custom |
| Year model | 2012 |
| Type | Custom / cruiser |
| Price as new | US$ 12999. Euro 14895. UK £ 11699. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1573.3 ccm (96.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Air-cooled, Twin Cam 96™ |
| Torque | 124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 95.3 x 111.3 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressurized, dry-sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio. |
| Fuel consumption | 5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
| Greenhouse gases | 126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, staggered shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle) | 29.0° |
| Trail | 119 mm (4.7 inches) |
| Front suspension | 49 mm with polished aluminum fork triple clamp and dual-rate springs |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Coil-over shock |
| Rear wheel travel | 79 mm (3.1 inches) |
| Front tire | 100/90-H19 |
| Rear tire | 160/70-V17 |
| Front brakes | Single disc. 4-piston fixed. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 2-piston torque-free floating. Optional ABS. |
| Diameter | 292 mm (11.5 inches) |
| Wheels | Steel Laced |
| Seat | One-piece, two-up Dyna classic seat |
| Physical measures and capacities | |
| Dry weight | 293.9 kg (648.0 pounds) |
| Weight incl. oil, gas, etc | 308.0 kg (679.0 pounds) |
| Seat height | 668 mm (26.3 inches) If adjustable, lowest setting. |
| Overall length | 2360 mm (92.9 inches) |
| Ground clearance | 117 mm (4.6 inches) |
| Wheelbase | 1631 mm (64.2 inches) |
| Fuel capacity | 18.93 litres (5.00 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Big Blue Pearl, Ember Red Sunglo/Merlot Sunglo, Midnight Pearl/Brilliant Silver Pearl, Tequila Sunrise/H-D Orange |
| Instruments | Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
| Electrical | Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 24 months, unlimited mileage. |
