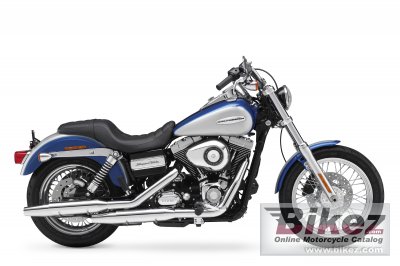

2010 Harley-Davidson FXDC Dyna Super Glide Custom. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The Dyna® Super Glide® Custom stands out on the street, with laced wheels and plenty of chrome. The speedometer is mounted on the tank console, giving the front end a cleaner look. The Harley-Davidson Dyna family has its roots in the factory-custom revolution of the 1970s, and combines Big Twin performance with an extended FX front end. Dyna models deliver great handling and bold styling. |
|
General information |
|
Model
|
Harley-Davidson FXDC Dyna Super Glide Custom |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
49mm with polished aluminium fork |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
295.0 kg (650.4 pounds) |
|
Seat height
|
710 mm (28.0 inches) If adjustable, lowest setting. |
|
Overall length
|
2345 mm (92.3 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
18.80 litres (4.97 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Scarlet Red, Black Ice Pearl, Flame Blue Pearl and Brilliant Silver Pearl |
|
Starter
|
Electric |
|
Comments
|
New black powder-coated engine with chrome treatment covers; Low-profile front
fender; Sport wrap-around rear fender with painted supports; Chrome, low-profile
fuel tank console; Chrome, isolated riser; Mid-mounted rider footpegs; Standard
passenger footpegs; Stainless steel, pull-back handlebars; “Teardrop” air cleaner
assembly; One-piece, two-up Dyna® classic seat; New Michelin® Scorcher™ tyres |
