General information |
|
Motorcycle name
|

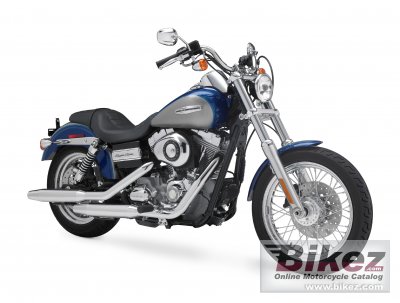

Harley-Davidson FXDC Dyna Super Glide Custom |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
68.0 HP (49.6 kW)) @ 5500 RPM |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped. |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
49mm with polished aluminium fork |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
104 mm (4.1 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
160/70-17 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
295.0 kg (650.4 pounds) |
|
Weight incl. oil, gas, etc
|
308.0 kg (679.0 pounds) |
|
Power/weight ratio
|
0.2305 HP/kg |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2355 mm (92.7 inches) |
|
Ground clearance
|
153 mm (6.0 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Oil capacity
|
2.50 litres (2.64 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Dark Blue Pearl, Red Hot Sunglo, Vivid Black and Pewter Pearl, Flame Blue Pearl and Pewter Pearl |
|
Starter
|
Electric |
|
Comments
|
Silver powder-coated engine with chrome treatment covers; New low-profile front
fender; Sport wrap-around rear fender with painted supports; Chrome, low-profile
fuel tank console; Chrome, isolated riser; Mid-mounted rider footpegs; Standard
passenger footpegs; Stainless steel, pull-back handlebar; “Teardrop” air cleaner assembly; One-piece, two-up Dyna® classic seat; |
|
Modifications compared to previous model
|
New silver-face speedometer with range countdown. |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
HiFloFiltro - HF171BRC |
|
Brake fluid
|
DOT 4 |
|
Battery
|
YTX20HL-BS |
|
Spark plugs
|
NGK DCPR8E, NGK DCPR8EIX |
|
Belt teeth
|
131 |
|
Belt width
|
1 in. |
|
Pulley teeth
|
32/66 (front/rear) |
|
Fork tube size
|
49 mm (1.9 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
