General information |
|
Model name
|

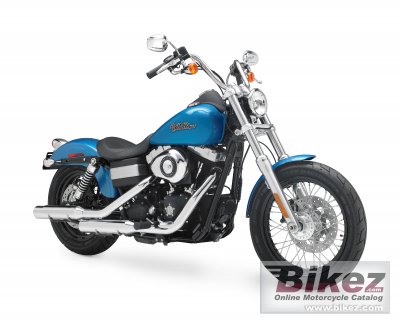

Harley-Davidson FXDB Street Bob |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 12999. Euro 13295. UK £ 10350. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
49mm with polished aluminium fork triple clamp |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
100/90-19 |
|
Rear tire
|
160/70-B17 |
|
Front brakes
|
Single disc. 4-piston fixed |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston torque-free floating |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2355 mm (92.7 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
17.30 litres (4.57 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Brilliant Silver Pearl,
Cool Blue Pearl, Black Denim |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind |
|
Electrical
|
Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca. Charging: Three-phase, 40-amp system |
|
Light
|
55-watt low beam, 60-watt high beam. |
|
Factory warranty
|
24 months, unlimited mileage (US) |
