General information |
Motorcycle name
|

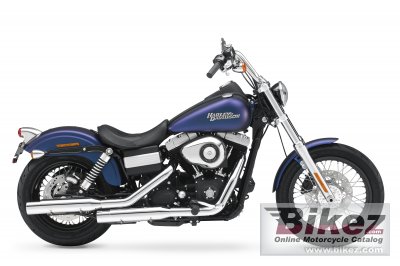

Harley-Davidson FXDB Street Bob |
Year
|
2010 |
Category
|
Custom / cruiser |
Price as new | US$ 12999. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1584.0 ccm (96.66 cubic inches) |
Engine type
|
V2, four-stroke |
Engine details
|
Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
Torque
|
153.0 Nm (15.6 kgf-m or 112.9 ft.lbs) @ 3500 RPM |
Compression
|
9.2:1 |
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
Fuel control
|
Overhead Valves (OHV) |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
9-plate, wet |
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
Chassis, suspension, brakes and wheels |
Frame type
|
Mild steel, tubular frame; rectangular section backbone; |
Rake (fork angle)
|
29.0° |
Trail
|
119 mm (4.7 inches) |
Front suspension
|
49mm with polished aluminium fork triple clamp |
Front wheel travel
|
127 mm (5.0 inches) |
Rear suspension
|
Coil-over shock |
Rear wheel travel
|
79 mm (3.1 inches) |
Front tire
|
100/90-19 |
Rear tire
|
160/70-B17 |
Front brakes
|
Single disc. 4-piston fixed |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc. 2-piston torque-free floating |
Diameter
|
292 mm (11.5 inches) |
Physical measures and capacities |
Dry weight
|
290.0 kg (639.3 pounds) |
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
Overall length
|
2355 mm (92.7 inches) |
Ground clearance
|
120 mm (4.7 inches) |
Wheelbase
|
1630 mm (64.2 inches) |
Fuel capacity
|
17.30 litres (4.57 US gallons) |
Oil capacity
|
2.60 litres (2.75 US quarts) |
Other specifications |
Color options
|
Vivid Black, Black Denim, Black Ice Denim, Red Hot Sunglo |
Starter
|
Electric |
Comments
|
Black powder-coated engine with polished treatment covers; Mid-mounted rider
footpegs; Stainless steel, mini “ape-hanger” handlebars; “Teardrop” air cleaner
assembly; Chopped, Bobber-style rear fender and low-profile front fender; Solo
seat; LED retro-styled tail light; Internally wired handlebars; New tank medallion;
New Michelin® Scorcher™ tyres |
