General information |
|
Model name
|

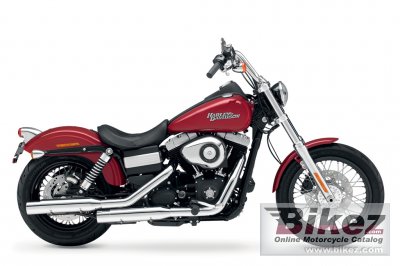

Harley-Davidson FXDB Dyna StreetBob |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 12999. Euro 13295. UK £ 10499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1573.3 ccm (96.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 96™ |
|
Torque
|
124.8 Nm (12.7 kgf-m or 92.0 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary Drive Chain, 34/46 ratio. Final Drive Belt, 32/66 ratio. |
|
Fuel consumption
|
5.47 litres/100 km (18.3 km/l or 43.00 mpg) |
|
Greenhouse gases
|
126.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered, straight-cut shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
49 mm front forks with polished aluminum fork triple clamp and dual-rate springs |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
100/90-H19 |
|
Rear tire
|
160/70-V17 |
|
Front brakes
|
Single disc. 4-piston fixed. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston torque-free floating. Optional ABS. |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Black, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
288.9 kg (637.0 pounds) |
|
Weight incl. oil, gas, etc
|
303.9 kg (670.0 pounds) |
|
Seat height
|
648 mm (25.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2357 mm (92.8 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1631 mm (64.2 inches) |
|
Fuel capacity
|
17.79 litres (4.70 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Ember Red Sunglo, Black Denim |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light |
|
Electrical
|
Sealed lead acid battery, maintenance-free, 12V, 12 amp/hour, 200 cca. |
|
Factory warranty
|
24 months, unlimited mileage. |
