| Harley-Davidson's profilation of this bike |
| A modern distillation of classic post-war Bobber design, the Dyna Street Bob is stripped down to the edge of street-legal trim. That look gets refined for 2009, with a new rear fender cut even higher and topped with a curved, retro tail light. The solo seat gets restyled, and new laced wheels feature gloss black rims. |
|
General information |
|
Model name
|

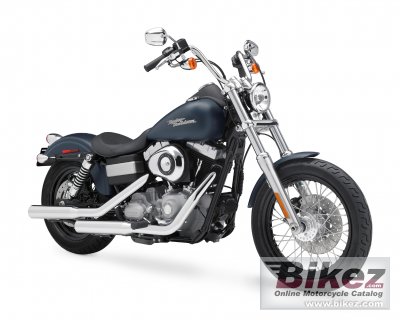

Harley-Davidson FXDB Dyna Street Bob |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
5.50 litres/100 km (18.2 km/l or 42.77 mpg) |
|
Greenhouse gases
|
127.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
119 mm (4.7 inches) |
|
Front suspension
|
49mm fork |
|
Rear suspension
|
Coil-over shock |
|
Front tire
|
100/90-19 |
|
Rear tire
|
160/70-17 |
|
Front brakes
|
Single disc. 4-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Weight incl. oil, gas, etc
|
205.0 kg (451.9 pounds) |
|
Seat height
|
655 mm (25.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2355 mm (92.7 inches) |
|
Ground clearance
|
142 mm (5.6 inches) |
|
Fuel capacity
|
18.20 litres (4.81 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black; Black Denim; Pewter Denim; Red Hot Denim; Dark Blue Denim |
|
Starter
|
Electric |
