| Harley-Davidson's profilation of this bike |
| The Dyna® Super Glide® is either a pure Big Twin riding machine, or a blank canvas for a personalized, custom motorcycle. In each case, it offers classic styling and a sporty ride. The Super Glide is the most-affordable Harley-Davidson® Big Twin model. |
|
General information |
|
Motorcycle name
|

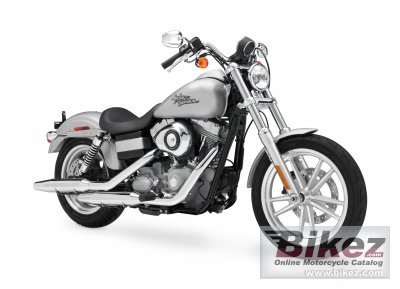

Harley-Davidson FXD Dyna Super Glide |
|
Year of manufacture
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 11999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
123.0 Nm (12.5 kgf-m or 90.7 ft.lbs) @ 3125 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; stamped, |
|
Rake (fork angle)
|
29.0° |
|
Front suspension
|
49mm with polished aluminium fork |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Coil-over shock |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
295.0 kg (650.4 pounds) |
|
Seat height
|
668 mm (26.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1231 mm (48.5 inches) |
|
Overall length
|
2357 mm (92.8 inches) |
|
Overall width
|
932 mm (36.7 inches) |
|
Ground clearance
|
116 mm (4.6 inches) |
|
Wheelbase
|
1625 mm (64.0 inches) |
|
Fuel capacity
|
18.80 litres (4.97 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson FXD Dyna Super Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Engine performance for the 2010 Harley-Davidson FXD Dyna Super Glide:
 (84.5 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
