General information |
|
Model
|

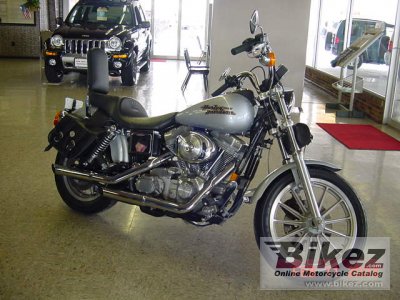

Harley-Davidson FXD Dyna Super Glide |
|
Model year
|
1999 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1450.0 ccm (88.48 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
68.0 HP (49.6 kW)) @ 5400 RPM |
|
Torque
|
116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) |
|
Top speed
|
165.0 km/h (102.5 mph) |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubular. Rectangular section backbone. Stamped, cast and forged junctions, forged fender supports. |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
39 mm polished aluminum fork triple clamp and dual-rate springs |
|
Rear suspension
|
Coil over shock |
|
Front tire
|
100/90-19 |
|
Rear tire
|
MT90-B16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
277.0 kg (610.7 pounds) |
|
Weight incl. oil, gas, etc
|
301.0 kg (663.6 pounds) |
|
Power/weight ratio
|
0.2455 HP/kg |
|
Overall length
|
2357 mm (92.8 inches) |
|
Ground clearance
|
153 mm (6.0 inches) |
|
Wheelbase
|
1587 mm (62.5 inches) |
|
Fuel capacity
|
18.60 litres (4.91 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
