General information |
|
Model
|

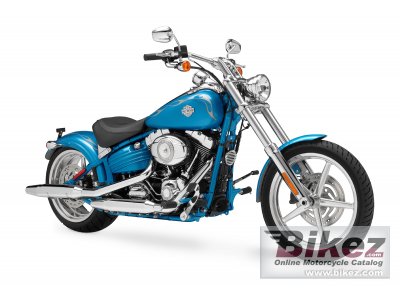

Harley-Davidson FXCWC Softail Rocker C |
|
Year of manufacture
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 19499. Euro 21195. UK £ 16310. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 96B. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder. |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. ESPFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. Swingarm: Mild steel, round tube sections, forged junctions; MIG welded. |
|
Rake (fork angle)
|
36.0° |
|
Trail
|
157 mm (6.2 inches) |
|
Front suspension
|
49mm telescopic |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
90/90-R19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Single disc. 4-piston. Patented, uniform expansion rotors |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston. Patented, uniform expansion rotors |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Polished, 5-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
315.7 kg (696.0 pounds) |
|
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2415 mm (95.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1758 mm (69.2 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black Deluxe, Scarlet Red Deluxe, Cool Blue Pearl Deluxe, Black Denim Deluxe |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed ind |
