General information |
|
Model
|

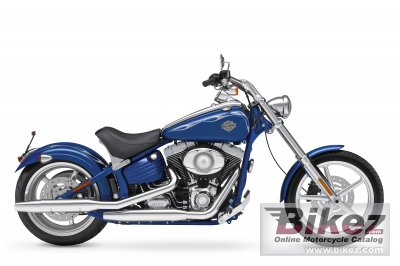

Harley-Davidson FXCWC Softail Rocker C |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 19499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
121.0 Nm (12.3 kgf-m or 89.2 ft.lbs) @ 3250 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. ESPFI |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
|
Rake (fork angle)
|
36.0° |
|
Trail
|
157 mm (6.2 inches) |
|
Front suspension
|
49mm telescopic |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
90/90-R19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
307.0 kg (676.8 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2415 mm (95.1 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1760 mm (69.3 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
3.10 litres (3.28 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black Deluxe, Flame Blue Pearl Deluxe, Black Denim Deluxe, Red Hot Sunglo Deluxe |
|
Starter
|
Electric |
|
Comments
|
Black powder-coated engine with chrome treatment covers; Colour-matched
“horseshoe” oil tank with chrome external oil lines; Chrome, stretch low-profile
tank console; Cloisonne 3-D tank medallions; Chrome, fire-truck inspired bullet
headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted
rider footpegs; Standard passenger footpegs; Chrome, pull-back internally-wired
handlebars; Solo style “Trick™” two-in-one seat; Low-profile front fender;
Colour-matched frame and swingarm |
