General information |
|
Model
|

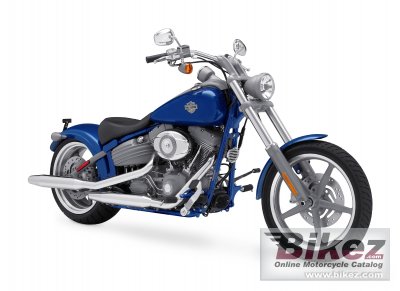

Harley-Davidson FXCW Softail Rocker |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
117.0 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 3200 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
36.5° |
|
Trail
|
157 mm (6.2 inches) |
|
Front suspension
|
49mm telescopic fork |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
79 mm (3.1 inches) |
|
Front tire
|
90/90-R19 |
|
Rear tire
|
240/40-R18 |
|
Front brakes
|
Single disc. 4-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Physical measures and capacities |
|
Dry weight
|
307.0 kg (676.8 pounds) |
|
Seat height
|
622 mm (24.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2415 mm (95.1 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1760 mm (69.3 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Other specifications |
|
Color options
|
Vivid Black, Vivid Black Deluxe, Flame Blue Pearl, Crimson Red Sunglo |
|
Starter
|
Electric |
|
Comments
|
Silver powder-coated engine; Custom finned cast aluminium “horseshoe” oil tank
with chrome external oil lines; Painted, stretch low-profile tank console; Fire-truck
inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser;
Forward-mounted rider footpegs; Stainless steel, pull-back, internally-wired
handlebars; Lowest seat height of all Harley-Davidson® motorcycles; |
|
Modifications compared to previous model
|
New lowprofile front fender |
