General information |
|
Model name
|

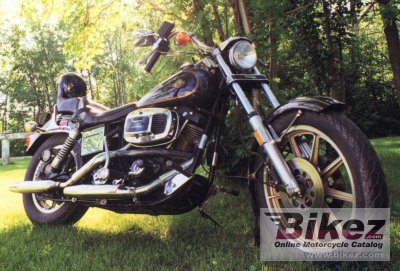

Harley-Davidson FXB 1340 Sturgis |
|
Year of manufacture
|
1982 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
67.0 HP (48.9 kW)) @ 5800 RPM |
|
Torque
|
69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 3000 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Keihin |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Analogue CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks |
|
Rear suspension
|
Swinging fork. |
|
Front brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
255 mm (10.0 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
278.0 kg (612.9 pounds) |
|
Seat height
|
740 mm (29.1 inches) If adjustable, lowest setting. |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 50W |
|
Spark plugs
|
NGK BPR5ES-11 |
|
Idle speed
|
900 RPM |
|
Sprockets
|
23/51 (front/rear) |
|
Fork tube size
|
35 mm (1.4 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
