General information |
|
Model
|

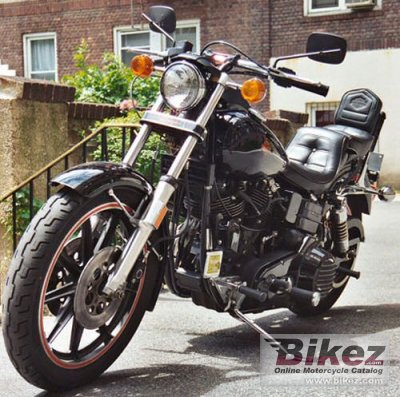

Harley-Davidson FXB 1340 Sturgis |
|
Year of manufacture
|
1980 |
|
Type
|
Classic |
|
Rating
|
3.8 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1337.0 ccm (81.58 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
67.0 HP (48.9 kW)) @ 5800 RPM |
|
Top speed
|
170.0 km/h (105.6 mph) |
|
Compression
|
7.4:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel control
|
Overhead Valves (OHV) |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
3.75-19 |
|
Rear tire
|
5.10-16 |
|
Front brakes
|
Dual disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
278.0 kg (612.9 pounds) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
