General information |
|
Motorcycle name
|

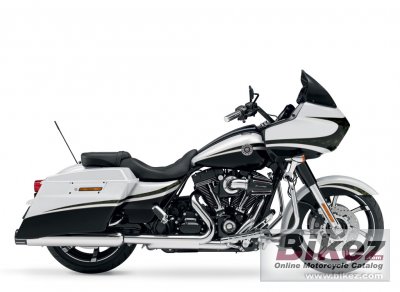

Harley-Davidson FLTRXSE CVO Road Glide Custom |
|
Year
|
2012 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1802.7 ccm (110.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 110™ |
|
Torque
|
165.4 Nm (16.9 kgf-m or 122.0 ft.lbs) @ 3750 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio |
|
Exhaust system
|
Chrome dual exhaust with 4in. touring mufflers and muffler shields |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3 mm telescopic with blow-by valve |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Hydraulic, adjustable |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/60-B19 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Double disc. 4-piston calipers. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper. ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Contrast Chrome Agitator Custom Wheels |
|
Seat
|
Custom solo Touring seat and matching detachable pillion with color coordinated stitching and cover matched to vehicle color |
|
Physical measures and capacities |
|
Dry weight
|
366.1 kg (807.0 pounds) |
|
Weight incl. oil, gas, etc
|
383.3 kg (845.0 pounds) |
|
Seat height
|
676 mm (26.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2443 mm (96.2 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
White Gold Pearl/Starfire Black with
Real Smoke graphics, Maple Metallic/Vivid Black with Real Smoke graphics, Candy Cobalt/Twilight Blue
with Real Smoke graphics |
|
Instruments
|
Diamond cut finish, fairing mounted electronic speedometer with odometer with resettable trip meter, fuel range countdown, engine diagnostic read-out, 2 in. voltmeter and oil pressure diamond cut gauges, diamond cut tachometer |
|
Electrical
|
Sealed, maintenance-free battery, |
|
Light
|
55-watt low beam, 120-watt high beam |
|
Factory warranty
|
2 years, unlimited mileage. |
|
Comments
|
Injection-molded, extended hard saddlebags; colormatched
rear fascia with LED brake/turn lights. CVO is ab abbreviation of HD´s Custom Vehicle Operations. |
