Harley-Davidson FLTRX Road Glide Custom 20122012 Harley-Davidson FLTRX Road Glide Custom specifications, pictures, reviews and rating |

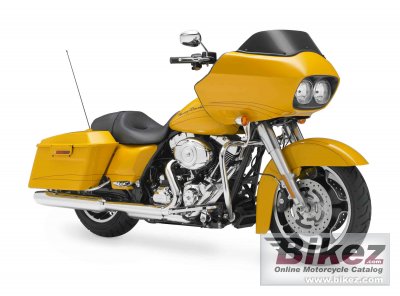

2012 Harley-Davidson FLTRX Road Glide Custom. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The frame-mounted Shark-Nose fairing always leads you in the direction of the open road. With its twin headlamps, iconic style and unique attitude, it´s absolutely distinct on the streets, while its integrated storage gives you a resting place for valuables you need to access easily during your journey. |
| General information | |
|---|---|
| Motorcycle name | Harley-Davidson FLTRX Road Glide Custom |
| Model year | 2012 |
| Category | Touring |
| Price as new | US$ 19499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled Twin Cam 103™ with Integrated Oil-Cooler |
| Torque | 135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Driveline | Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3 mm telescopic, triple circuit damping |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm. |
| Rear wheel travel | 51 mm (2.0 inches) |
| Front tire | 130/70-BW18 |
| Rear tire | 180/65-BW16 |
| Front brakes | Double disc. 4-piston calipers. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston caliper. Optional ABS. |
| Diameter | 300 mm (11.8 inches) |
| Wheels | Black, Split 5-Spoke Cast Aluminum w/ Orange Pinstripe |
| Seat | One-piece, two-up Street Glide®-style seat with perforated insert |
| Physical measures and capacities | |
| Dry weight | 350.2 kg (772.0 pounds) |
| Weight incl. oil, gas, etc | 370.6 kg (817.0 pounds) |
| Seat height | 663 mm (26.1 inches) If adjustable, lowest setting. |
| Overall length | 2413 mm (95.0 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1613 mm (63.5 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Big Blue Pearl, Chrome Yellow, Black Denim |
| Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
| Electrical | Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
| Factory warranty | 24 months, unlimited mileage. |
| Comments | Sidecar option. Injection-molded hard saddlebags with color-matched latches; 2.26 cu. ft. volume. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Harley-Davidson FLTRX Road Glide Custom discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Free motorcycle classifieds
Click here to sell a used 2012 Harley-Davidson FLTRX Road Glide Custom or advertise any other MC for sale. You can list all available Harley-Davidson FLTRX Road Glide Custom bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.| Rating sample for this Harley-Davidson bike | |
Reliability for the 2012 Harley-Davidson FLTRX Road Glide Custom:  (83.1 out of 100)Click here for complete rating. |
|
