Harley-Davidson FLTRU Road Glide Ultra 20112011 Harley-Davidson FLTRU Road Glide Ultra specifications, pictures, reviews and rating |

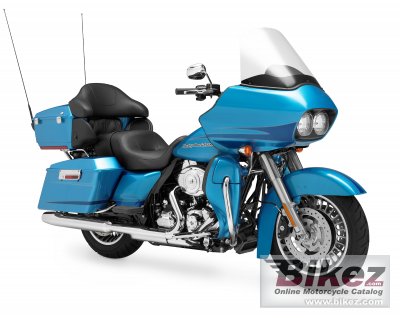

2011 Harley-Davidson FLTRU Road Glide Ultra. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The Road Glide® Ultra combines the light handling and wind-splitting aerodynamics of a frame-mounted fairing with a full complement of touring appointments for the devoted long distance rider and passenger. The innovative Harley-Davidson® Touring chassis is based on a single-spar, rigid backbone frame and a stout swingarm developed to withstand the demands of long-haul touring riders and today´s powerful engines. |
| General information | |
|---|---|
| Model name | Harley-Davidson FLTRU Road Glide Ultra |
| Model year | 2011 |
| Category | Custom / cruiser |
| Price as new | US$ 22499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Air-cooled, Twin Cam 103 |
| Torque | 138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3500 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.3 mm (3.9 x 4.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Overhead Valves (OHV) |
| Ignition | Single-fire, non-wasted, map-controlled spark ignition |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/68 ratio |
| Fuel consumption | 5.29 litres/100 km (18.9 km/l or 44.47 mpg) |
| Greenhouse gases | 122.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3 mm telescopic, triple-circuit damping |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable |
| Rear wheel travel | 76 mm (3.0 inches) |
| Front tire | 130/80-16 |
| Rear tire | 180/65-16 |
| Front brakes | Double disc. 4-piston fixed caliper |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston fixed caliper |
| Diameter | 300 mm (11.8 inches) |
| Wheels | Optional Style Type: Tubeless Chrome Aluminum Profile Laced |
| Physical measures and capacities | |
| Dry weight | 385.6 kg (850.0 pounds) |
| Weight incl. oil, gas, etc | 413.0 kg (910.5 pounds) |
| Seat height | 693 mm (27.3 inches) If adjustable, lowest setting. |
| Overall length | 2507 mm (98.7 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1613 mm (63.5 inches) |
| Fuel capacity | 22.70 litres (6.00 US gallons) |
| Oil capacity | 4.00 litres (4.23 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Brilliant Silver Pearl, Cool Blue Pearl, Merlot Sunglo |
| Starter | Electric |
| Instruments | High beam, running lights, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warning, cruise control, ABS (optional) |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 24 months, unlimited mileage. (US) |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Harley-Davidson FLTRU Road Glide Ultra discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
