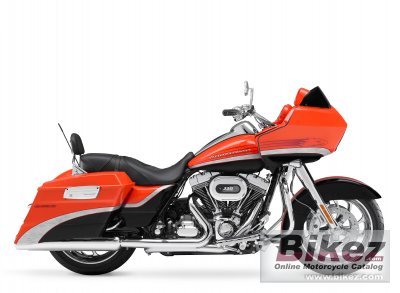

2009 Harley-Davidson FLTRSE3 CVO Road Glide. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| A sleek, lean muscle machine, the 2009 CVO Road Glide is a bagger loaded with style and attitude. From its lowered front fender and skirted saddlebags to its vivid paint and massive powertrain, the CVO team showed little restraint when executing the CVO Road Glide. |
|
General information |
|
Model
|
Harley-Davidson FLTRSE3 CVO Road Glide |
|
Year of manufacture
|
2009 |
|
Type
|
Custom / cruiser |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1800.0 ccm (109.84 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
155.0 Nm (15.8 kgf-m or 114.3 ft.lbs) @ 6500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Fuel system
|
Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Hydraulically actuated, 9-plate wet, with high performance spring |
|
Exhaust system
|
Chrome, 2-1-2 exhaust header pipe design with |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
New mild steel, single spar rigid backbone with |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, cartridge-style damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Double disc. 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
384.0 kg (846.6 pounds) |
|
Seat height
|
668 mm (26.3 inches) If adjustable, lowest setting. |
|
Overall length
|
2428 mm (95.6 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1614 mm (63.5 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Other specifications |
|
Color options
|
Titanium Dust with Ghost Feather graphics; Electric Orange and Vivid Black with
Ghost Feather graphics |
|
Starter
|
Electric |
|
Comments
|
CVO is HD´s Custom Vehicle Operations. |
