| Harley-Davidson's profilation of this bike |
| Identified by its “shark nose” frame-mounted fairing, the Road Glide gobbles up the highway with rakish style. Hard-shell saddlebags, electronic cruise control, and the 40-watt Advanced Audio System by Harman/Kardon are standard equipment. |
|
General information |
|
Model
|

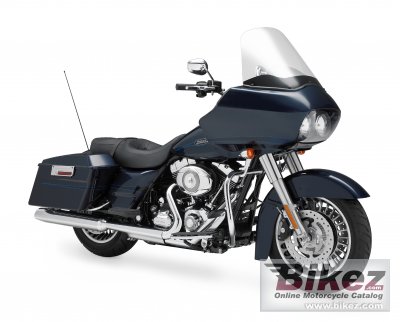

Harley-Davidson FLTR Road Glide |
|
Year
|
2009 |
|
Category
|
Touring |
|
Rating
|
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
2-1-2 exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
New mild steel, single spar rigid backbone with |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
173 mm (6.8 inches) |
|
Front suspension
|
41.3mm telescopic fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. Brembo triple-disc brake system |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
355.0 kg (782.6 pounds) |
|
Weight incl. oil, gas, etc
|
378.0 kg (833.3 pounds) |
|
Seat height
|
683 mm (26.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1397 mm (55.0 inches) |
|
Overall length
|
2390 mm (94.1 inches) |
|
Overall width
|
909 mm (35.8 inches) |
|
Ground clearance
|
129 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Optional ABS |
| Update specs | Report missing specs or required updates. |
|
Further information |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder |
Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Harley-Davidson FLTR Road Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Offroad capabilities for the 2009 Harley-Davidson FLTR Road Glide:
 (23.7 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
