General information |
|
Motorcycle name
|

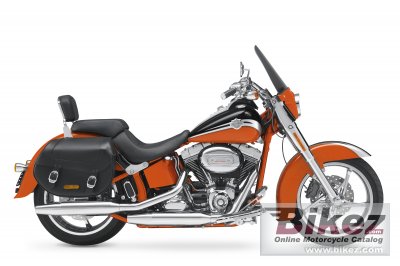

Harley-Davidson FLSTSE CVO Softail Convertible |
|
Year of manufacture
|
2010 |
|
Type
|
Touring |
| Price as new | US$ 27999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1800.0 ccm (109.84 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 2500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.1 mm (4.0 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Hydraulically actuated, 9-plate wet, with high performance spring |
|
Exhaust system
|
Chrome shorty dual exhaust with |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame; rectangular section backbone; |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3mm telescopic, chrome “beer can” covers |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
200/50-R18 |
|
Front brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
340.0 kg (749.6 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2490 mm (98.0 inches) |
|
Ground clearance
|
110 mm (4.3 inches) |
|
Wheelbase
|
1635 mm (64.4 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Oil capacity
|
2.60 litres (2.75 US quarts) |
|
Other specifications |
|
Color options
|
Inferno Orange/Vivid Black with Silver Braze Graphics, Abyss Blue/ Sapphire with Silver Braze Graphics,
Crimson Red Sunglo/Autumn Haze with Metal Grind Graphics |
|
Starter
|
Electric |
|
Comments
|
CVO means HD´s Custom Vehicle Operations |
