General information |
|
Model name
|

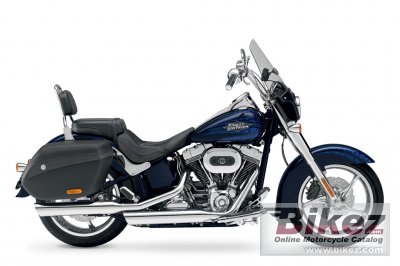

Harley-Davidson FLSTSE3 CVO Softail Convertible |
|
Model year
|
2012 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 26699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1802.7 ccm (110.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 110B™ |
|
Torque
|
142.4 Nm (14.5 kgf-m or 105.0 ft.lbs) @ 2750 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.3 mm (4.0 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Driveline
|
Primary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio |
|
Fuel consumption
|
5.23 litres/100 km (19.1 km/l or 44.98 mpg) |
|
Greenhouse gases
|
121.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, shorty-dual exhaust with chrome mufflers and muffler shields |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3 mm telescopic, chrome upper fork-slider covers |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
200/50-R18 |
|
Front brakes
|
Single disc. 4-piston calipers. ABS. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper. ABS. |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Mirror Chrome Stinger Custom Wheels |
|
Seat
|
Custom leather seat, removable passenger pillion, and detachable stylized passenger upright and backrest pad with distressed brown leather (satin pewter only) or reptile inserts |
|
Physical measures and capacities |
|
Dry weight
|
345.2 kg (761.0 pounds) |
|
Weight incl. oil, gas, etc
|
357.4 kg (788.0 pounds) |
|
Seat height
|
620 mm (24.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2410 mm (94.9 inches) |
|
Ground clearance
|
109 mm (4.3 inches) |
|
Wheelbase
|
1631 mm (64.2 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Oil capacity
|
2.80 litres (2.96 US quarts) |
|
Other specifications |
|
Color options
|
Crimson Red Sunglo with Scarlet Crystal graphics, Abyss Blue with
Catacomb graphics, Satin Pewter with
Catacomb graphics |
|
Starter
|
Electric |
|
Instruments
|
Digital speedometer and analog tachometer. Time of day clock on odometer, dual tripmeter, engine diagnostics readout, LED indicator lights |
|
Electrical
|
Sealed, maintenance-free battery, |
|
Light
|
55-watt low beam, 60-watt high beam |
|
Factory warranty
|
2 years, unlimited mileage. |
|
Comments
|
CVO is ab abbreviation of HD´s Custom Vehicle Operations. |
