Harley-Davidson FLSTSB Softail Cross Bones 20102010 Harley-Davidson FLSTSB Softail Cross Bones specifications, pictures, reviews and rating |

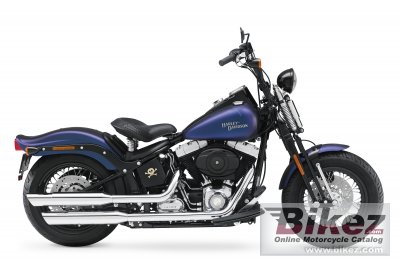

2010 Harley-Davidson FLSTSB Softail Cross Bones. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| With a Springer® front end and authentic post-war bobber details, the Cross Bones® is a raw, stripped-down-and-chopped custom. The styling is timeless, the comfort and reliability totally modern. |
| General information | |
|---|---|
| Model | Harley-Davidson FLSTSB Softail Cross Bones |
| Year of manufacture | 2010 |
| Type | Custom / cruiser |
| Price as new | US$ 16999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1584.0 ccm (96.66 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet |
| Exhaust system | Straight shot exhaust with slash-cut ends |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle) | 32.5° |
| Trail | 160 mm (6.3 inches) |
| Front suspension | Black leading link for Springer® model |
| Front wheel travel | 97 mm (3.8 inches) |
| Rear suspension | Hidden, horizontal-mounted, coil-over |
| Rear wheel travel | 91 mm (3.6 inches) |
| Front tire | MT90-B16 |
| Rear tire | 200/55-R17 |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 318.0 kg (701.1 pounds) |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall length | 2330 mm (91.7 inches) |
| Ground clearance | 120 mm (4.7 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 19.70 litres (5.20 US gallons) |
| Oil capacity | 3.10 litres (3.28 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Brilliant Silver Pearl, Black Denim, Black Ice Denim |
| Starter | Electric |
| Comments | Gloss Black Springer® front end with chopped front fender; Gloss Black mini “ape-hanger” handlebars; Gloss Black console with cat’s-eye indicators; Rider adjusted, two-position, sprung solo seat; Tribal pinstripe graphics on fuel tank and fenders; Gloss Black, oval air cleaner cover; Half moon floorboards with heel/toe shifter; Willie G. signed skull graphics on the oil tank |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Harley-Davidson FLSTSB Softail Cross Bones discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2010 Harley-Davidson FLSTSB Softail Cross Bones for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Racing track capabilities for the 2010 Harley-Davidson FLSTSB Softail Cross Bones:  (55.3 out of 100)Click here for complete rating. |
|
