General information |
|
Model name
|

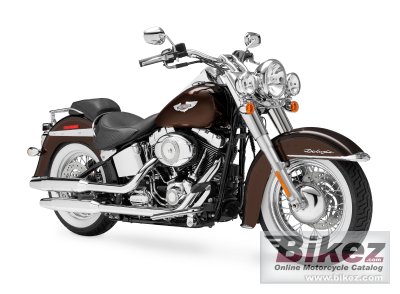

Harley-Davidson FLSTN Softail Deluxe |
|
Year model
|
2011 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 16799. Euro 19790. UK £ 15290. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Twin Cam 96B. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder |
|
Torque
|
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
5.29 litres/100 km (18.9 km/l or 44.47 mpg) |
|
Greenhouse gases
|
122.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3mm telescopic, “beer can” covers |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
91 mm (3.6 inches) |
|
Front tire
|
MT90-16 |
|
Rear tire
|
MU85-B16 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Wheels
|
Chrome, Laced Steel |
|
Physical measures and capacities |
|
Dry weight
|
315.3 kg (695.0 pounds) |
|
Seat height
|
658 mm (25.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1125 mm (44.3 inches) |
|
Overall length
|
2405 mm (94.7 inches) |
|
Overall width
|
980 mm (38.6 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1635 mm (64.4 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Cool Blue Pearl,
Merlot Sunglo, Birch White/Vivid Black, Dark Candy Root Beer/Light Candy, Root Beer, Psychedelic Purple/Vivid Black,
Apple Green/Vivid Black, |
|
Starter
|
Electric |
|
Electrical
|
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca battery. |
|
Light
|
55-watt low beam, 60-watt high beam |
|
Factory warranty
|
24 months, no milage limitation (US) |
