General information |
|
Motorcycle name
|

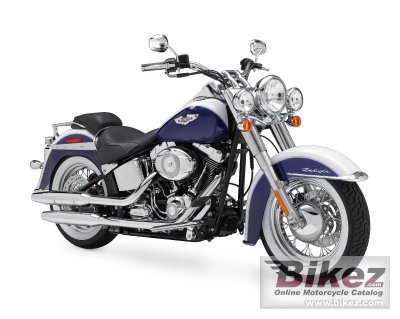

Harley-Davidson FLSTN Softail Deluxe |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
|
Greenhouse gases
|
155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, staggered shorty exhaust with dual mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3mm telescopic, “beer can” covers |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
MT90-16 |
|
Rear tire
|
MU85-B16 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
315.0 kg (694.5 pounds) |
|
Seat height
|
690 mm (27.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2405 mm (94.7 inches) |
|
Ground clearance
|
131 mm (5.2 inches) |
|
Wheelbase
|
1635 mm (64.4 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Oil capacity
|
3.10 litres (3.28 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Flame Blue Pearl, Red Hot Sunglo, Scarlet Red/Vivid Black, White Ice Pearl/Black Ice Pearl. |
|
Starter
|
Electric |
