| Harley-Davidson's profilation of this bike |
| The FLSTN Softail Deluxe combines nostalgia with a modern powertrain and suspension for a truly confidence-inspiring riding experience. For 2009, the Softail Deluxe has a redesigned, narrow-profile rider seat with collapsible pockets in the shell that make the seat narrower when straddling the motorcycle at rest. |
| General information |
|---|

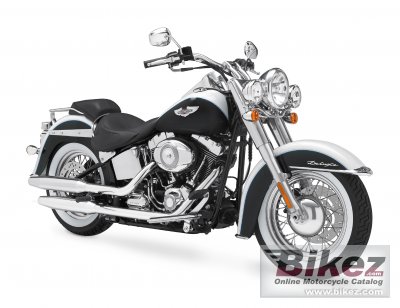

| Model | Harley-Davidson FLSTN Softail Deluxe |
| Year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.9 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 1584.0 ccm (96.66 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 120.7 Nm (12.3 kgf-m or 89.0 ft.lbs) @ 2850 RPM |
| Compression | 9.2:1 |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Lubrication system | Pressurized, dry sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet |
| Fuel consumption | 5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
| Greenhouse gases | 116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Chrome Over/Under Shotgun exhaust |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Mild steel tubular frame; rectangular section backbone;stamped, cast, and forged junctions; forged fender supports; MIG welded |
| Rake (fork angle) | 32.0° |
| Trail | 147 mm (5.8 inches) |
| Front suspension | 41.3 mm telescopic, chrome dust covers |
| Rear suspension | Hidden, horizontal-mounted, coil-over |
| Front tire | MT90-16 |
| Rear tire | MU85-B16 |
| Front brakes | Single disc. 4-piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. 2-piston |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 316.0 kg (696.7 pounds) |
| Seat height | 622 mm (24.5 inches) If adjustable, lowest setting. |
| Overall length | 2405 mm (94.7 inches) |
| Overall width | 980 mm (38.6 inches) |
| Ground clearance | 121 mm (4.8 inches) |
| Wheelbase | 1638 mm (64.5 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Other specifications |
|---|
| Update specs | Report missing specs or required updates. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder | Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Harley-Davidson FLSTN Softail Deluxe discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Harley-Davidson bike
|
Racing track capabilities for the 2009 Harley-Davidson FLSTN Softail Deluxe:
 (45.2 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
