General information |
|
Motorcycle name
|

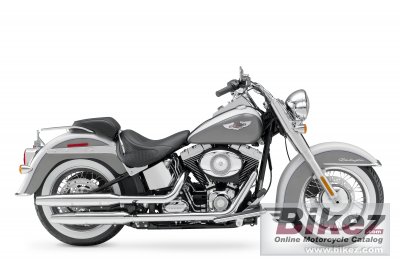

Harley-Davidson FLSTN Softail Deluxe |
|
Year of manufacture
|
2008 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 17445. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1573.3 ccm (96.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.3 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
4.35 litres/100 km (23.0 km/l or 54.07 mpg) |
|
Greenhouse gases
|
100.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, tubular frame. Rectangular section backbone. Stamped, cast and forged junctions. Forged fender supports. |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3 mm telescopic, chrome dust covers |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Front tire
|
90/16-MT |
|
Rear tire
|
85/16-MU |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston torque-free calipers |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
315.2 kg (695.0 pounds) |
|
Weight incl. oil, gas, etc
|
328.4 kg (724.0 pounds) |
|
Seat height
|
658 mm (25.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2405 mm (94.7 inches) |
|
Ground clearance
|
122 mm (4.8 inches) |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Black Pearl, Dark Blue Pearl (New), Crimson Red Sunglo (New), Candy Red Sunglo, Suede Blue Pearl/Vivid Black, White Gold Pearl/Pewter Pearl, White Gold Pearl/Black Pearl, 105th Anniversary CopperPearl/Vivid Black, Purple Haze (Custom), Copper |
|
Starter
|
Electric |
|
Comments
|
Low 24.5-in. seat height; wide whitewall tires; pull -back risers and handlebar; tombstone tail light; integrated luggage rack–exclusive to this model; Easy Reach sidestand; nostalgic valanced seat with chrome grab rail; custom tapered floor boards |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N KN-171C (Chrome) |
|
Brake fluid
|
DOT 4 |
|
Battery
|
GYZ20HL |
|
Spark plugs
|
NGK DCPR8E, NGK DCPR8EIX |
|
Belt teeth
|
133 |
|
Belt width
|
1 |
|
Pulley teeth
|
32/66 (front/rear) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
