Harley-Davidson FLSTFI Softail Fat Boy 20052005 Harley-Davidson FLSTFI Softail Fat Boy specifications, pictures, reviews and rating |

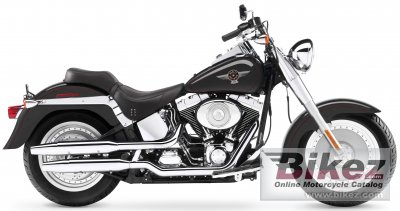

2005 Harley-Davidson FLSTFI Softail Fat Boy. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| Get an eyeful of this behemoth on wheels. But be careful your eyelids don’t get stuck wide open. It’s the 15th Anniversary Fat Boy® motorcycle. A machine built to have its very own gravitational pull. Everything here is super-sized. |
| General information | |
|---|---|
| Model | Harley-Davidson FLSTFI Softail Fat Boy |
| Year of manufacture | 2005 |
| Type | Custom / cruiser |
| Rating | 3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1449.0 ccm (88.42 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 101.0 Nm (10.3 kgf-m or 74.5 ft.lbs) @ 3800 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate clutch with diaphragm spring in oil bath |
| Exhaust system | Over/under shotgun with shorty duals |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.0° |
| Front tire | MH90-B16 |
| Rear tire | 150/80-16 |
| Front brakes | Double disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 307.0 kg (676.8 pounds) |
| Seat height | 645 mm (25.4 inches) If adjustable, lowest setting. |
| Overall length | 2396 mm (94.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Other specifications | |
| Color options | Vivid black, brilliant silver pearl, sierra red pearl, smokey gold pearl, black pearl, lava red sunglo, glacier white pearl, rich sunglo blue, two-tone chopper blue pearl and brilliant silver pearl, two-tone black cherry pearl and black pearl, two-tone si |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Harley-Davidson FLSTFI Softail Fat Boy discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2005 Harley-Davidson FLSTFI Softail Fat Boy for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Racing track capabilities for the 2005 Harley-Davidson FLSTFI Softail Fat Boy:  (44.2 out of 100)Click here for complete rating. |
|
