General information |
|
Model
|

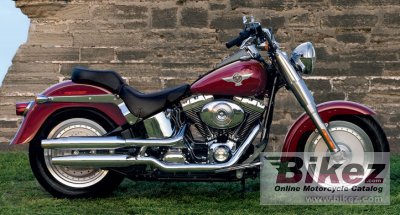

Harley-Davidson FLSTFI Fat Boy |
|
Model year
|
2006 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16545. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1442.2 ccm (88.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
67.0 HP (48.9 kW)) @ 5250 RPM |
|
Torque
|
115.3 Nm (11.8 kgf-m or 85.0 ft.lbs) @ 3000 RPM |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI ) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate clutch with diaphragm spring in oil bath |
|
Fuel consumption
|
5.11 litres/100 km (19.6 km/l or 46.03 mpg) |
|
Greenhouse gases
|
118.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Rear tire
|
150/80-B16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
309.8 kg (683.0 pounds) |
|
Weight incl. oil, gas, etc
|
323.9 kg (714.0 pounds) |
|
Power/weight ratio
|
0.2163 HP/kg |
|
Seat height
|
627 mm (24.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2395 mm (94.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, black pearl, deep cobalt, glacier white pearl, yellow pearl, brandy wine sunglo, two-tone chopper blue and brilliant silver, two-tone black cherry and black pearl, two-tone fire red pearl and vivid black, two-tone deep cobal |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N - KN-171B |
|
Battery
|
GYZ20HL |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Pulley teeth
|
32/70 (front/rear) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
