General information |
|
Model
|

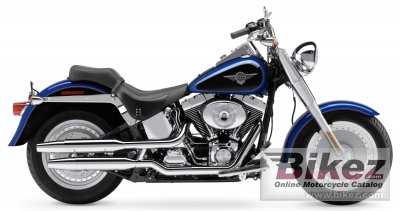

Harley-Davidson FLSTFI Fat Boy |
|
Model year
|
2004 |
|
Category
|
Custom / cruiser |
|
Rating
|
4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1449.0 ccm (88.42 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
62.5 HP (45.6 kW)) @ 5400 RPM |
|
Torque
|
102.0 Nm (10.4 kgf-m or 75.2 ft.lbs) @ 3500 RPM |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
95.3 x 101.6 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3 mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Rear wheel travel
|
109 mm (4.3 inches) |
|
Front tire
|
90/90-16 |
|
Rear tire
|
150/80-16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
307.0 kg (676.8 pounds) |
|
Weight incl. oil, gas, etc
|
324.0 kg (714.3 pounds) |
|
Power/weight ratio
|
0.2036 HP/kg |
|
Seat height
|
645 mm (25.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2396 mm (94.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
18.90 litres (4.99 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Color options
|
Vivid black, brilliant silver, sierra red, smokey gold, luxury blue, glacier white pearl, lava red sunglo, two-tone impact blue and vivid black, two-tone luxury teal and brilliant silver, two-tone sierra red and brilliant silver, two-tone smokey gold and |
|
Comments
|
Black powder-coated engine with chrome covers; fat front forks; solid disc front and rear wheels; large chrome headlight with fork nacelle |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Oil filter
|
K & N - KN-171B |
|
Battery
|
GYZ20HL |
|
Spark plugs
|
NGK DCPR7E, NGK DCPR7EIX |
|
Idle speed
|
1000 RPM |
|
Sprockets
|
32/70 (front/rear) |
|
Belt teeth
|
135 |
|
Belt width
|
1 1/8 |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
