Harley-Davidson FLSTFI Fat Boy 20022002 Harley-Davidson FLSTFI Fat Boy specifications, pictures, reviews and rating |

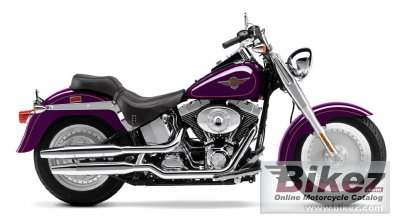

2002 Harley-Davidson FLSTFI Fat Boy. Picture by Harley-Davidson. Published with permission.. Submit more pictures.
| General information | |
|---|---|
| Model | Harley-Davidson FLSTFI Fat Boy |
| Year | 2002 |
| Category | Custom / cruiser |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1449.0 ccm (88.42 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 3000 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 95.3 x 101.6 mm (3.8 x 4.0 inches) |
| Fuel system | Injection |
| Cooling system | Air |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 320.0 kg (705.5 pounds) |
| Overall length | 2396 mm (94.3 inches) |
| Ground clearance | 123 mm (4.8 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Reserve fuel capacity | 1.90 litres (0.50 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Harley-Davidson FLSTFI Fat Boy discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2002 Harley-Davidson FLSTFI Fat Boy for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Offroad capabilities for the 2002 Harley-Davidson FLSTFI Fat Boy:  (35.0 out of 100)Click here for complete rating. |
|
