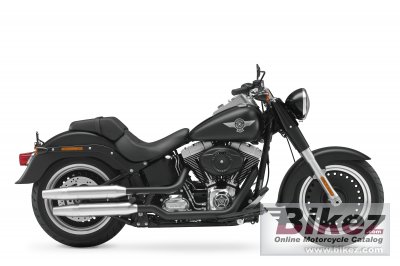

2010 Harley-Davidson FLSTFB Sportster Fat Boy Special. Picture credits - Harley-Davidson.
Submit more pictures.
|
|
| Harley-Davidson's profilation of this bike |
| The 2010 Fat Boy® Special motorcycle is a new take on one of the greatest hits to ever roll out of the Harley-Davidson design studio. Darker and lower than that original icon of fat-custom style, the Fat Boy Special retains the bold presence of the Fat Boy® while offering a fresh interpretation of the motorcycle that still defines the segment. |
|
General information |
|
Motorcycle name
|
Harley-Davidson FLSTFB Sportster Fat Boy Special |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 16299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Exhaust system
|
Over/under shotgun exhaust with dual mufflers and |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3mm telescopic, “beer can” covers |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over |
|
Rear wheel travel
|
91 mm (3.6 inches) |
|
Front tire
|
140/75-R17 |
|
Rear tire
|
200/55-R17 |
|
Front brakes
|
Single disc. 4-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
292 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
313.0 kg (690.0 pounds) |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2385 mm (93.9 inches) |
|
Ground clearance
|
125 mm (4.9 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
19.70 litres (5.20 US gallons) |
|
Oil capacity
|
3.10 litres (3.28 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Black Denim |
|
Starter
|
Electric |
|
Comments
|
Dark, slammed appearance with satin chrome accents; Denim Black frame and
swingarm; Low and narrow cut seat; Stainless steel mini beach handlebars with
internal wiring; Half-moon black rider footboards; Distinctive satin finished tank
medallion; Fuel tank panel with H-D medallion |
