Harley-Davidson FLSTFB Fat Boy Special 20122012 Harley-Davidson FLSTFB Fat Boy Special specifications, pictures, reviews and rating |

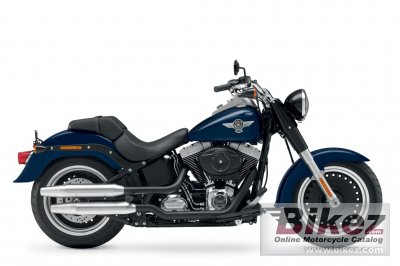

2012 Harley-Davidson FLSTFB Fat Boy Special. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| You get the classic lines of a vintage ´hardtail´ frame with the horizontal rear shocks hidden in the guts. It´s a signature rigid look, and you´ll only find it on a Softail® model. |
| General information | |
|---|---|
| Model | Harley-Davidson FLSTFB Fat Boy Special |
| Year of manufacture | 2012 |
| Type | Custom / cruiser |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1690.0 ccm (103.12 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Twin Cam 103B™ |
| Compression | 9.6:1 |
| Bore x stroke | 98.4 x 111.1 mm (3.9 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate with diaphragm spring in oil bath |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 31.6° |
| Trail | 147 mm (5.8 inches) |
| Front tire | 140/75-R17 |
| Rear tire | 200/55-R17 |
| Front brakes | Double disc |
| Rear brakes | Single disc |
| Wheels | Black, Bullet Hole Disc Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 313.0 kg (690.0 pounds) |
| Weight incl. oil, gas, etc | 330.0 kg (727.5 pounds) |
| Overall length | 2390 mm (94.1 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Oil capacity | 3.10 litres (3.28 US quarts) |
| Other specifications | |
| Starter | Electric |
| Instruments | High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), 6-speed, low fuel warnings |
| Update specs | Report missing specs or required updates. |
