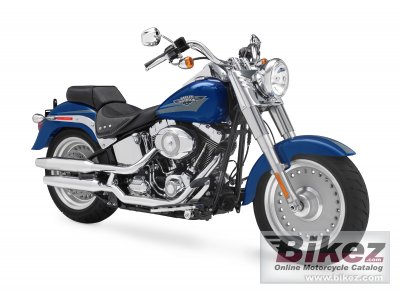

Harley-Davidson FLSTF Fat Boy 20092009 Harley-Davidson FLSTF Fat Boy specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| One of the world’s most distinctive motorcycles, the FLSTF Fat Boy rolls with a size and stature second to none. The Fat Boy rides wide on a 200mm rear tyre hugged by a deep rear fender with a 17-inch front wheel and bright chrome fork nacelle. |
| General information | |
|---|---|
| Model | Harley-Davidson FLSTF Fat Boy |
| Model year | 2009 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1584.0 ccm (96.66 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 120.0 Nm (12.2 kgf-m or 88.5 ft.lbs) @ 3300 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet |
| Exhaust system | Chrome, over/under shotgun exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel tubular frame; rectangular section backbone; |
| Rake (fork angle) | 32.0° |
| Trail | 147 mm (5.8 inches) |
| Front suspension | 41.3mm telescopic, “beer can” covers |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Hidden, horizontal-mounted, coil-over |
| Rear wheel travel | 109 mm (4.3 inches) |
| Front tire | 140/75-R17 |
| Rear tire | 200/55-R17 |
| Front brakes | Single disc. 4-piston |
| Diameter | 292 mm (11.5 inches) |
| Rear brakes | Single disc. 2-piston |
| Diameter | 292 mm (11.5 inches) |
| Physical measures and capacities | |
| Dry weight | 313.0 kg (690.0 pounds) |
| Seat height | 645 mm (25.4 inches) If adjustable, lowest setting. |
| Overall length | 2396 mm (94.3 inches) |
| Ground clearance | 130 mm (5.1 inches) |
| Wheelbase | 1635 mm (64.4 inches) |
| Fuel capacity | 18.90 litres (4.99 US gallons) |
| Other specifications | |
| Color options | Vivid Black, Black Pearl, Pewter Pearl, Flame Blue Pearl, Black Denim, Red Hot Sunglo |
| Starter | Electric |
| Comments | Black powder-coated engine with chrome treatment covers; Chrome, “horseshoe” oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Full-length rider footboards; Standard passenger footpegs; Chrome, internally-wired handlebars; Two-piece, two-up Softail® classic seat with removable seat pillionoil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Forward-mounted rider footpegs; Standard passenger footpegs; Polished steel, “ape-hanger” handlebars; One-piece, two-up Softail® classic seat; Passenger backrest; |
