General information |
|
Motorcycle name
|

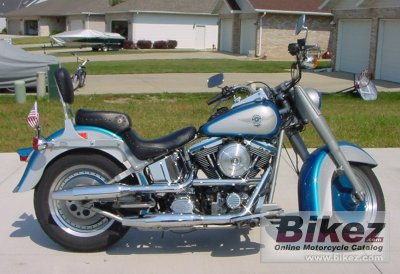

Harley-Davidson FLSTF Fat Boy |
|
Model year
|
1999 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.2 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1338.0 ccm (81.64 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
56.0 HP (40.9 kW)) @ 5000 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 2350 RPM |
|
Top speed
|
152.0 km/h (94.4 mph) |
|
0-100 km/h (0-62 mph)
|
7.20 seconds |
|
60-140 km/h (37-87 mph), highest gear
|
23.00 seconds |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
88.8 x 108.0 mm (3.5 x 4.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Single-fire, non-wasted, map-controlled spark ignition |
|
Lubrication system
|
Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump. |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet 9-plate |
|
Fuel consumption
|
5.80 litres/100 km (17.2 km/l or 40.56 mpg) |
|
Greenhouse gases
|
134.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.0° |
|
Trail
|
147 mm (5.8 inches) |
|
Front suspension
|
41.3 mm |
|
Front wheel travel
|
129 mm (5.1 inches) |
|
Rear suspension
|
Hidden, horizontal-mounted, coil-over shock |
|
Rear wheel travel
|
103 mm (4.1 inches) |
|
Front tire
|
130/90-16 |
|
Rear tire
|
130/90-16 |
|
Front brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
291 mm (11.5 inches) |
|
Rear brakes
|
Single disc. Four-piston calipers. |
|
Diameter
|
291 mm (11.5 inches) |
|
Physical measures and capacities |
|
Dry weight
|
310.0 kg (683.4 pounds) |
|
Weight incl. oil, gas, etc
|
305.0 kg (672.4 pounds) |
|
Power/weight ratio
|
0.1806 HP/kg |
|
Front percentage of weight
|
46.6 |
|
Seat height
|
680 mm (26.8 inches) If adjustable, lowest setting. |
|
Overall length
|
2395 mm (94.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1632 mm (64.3 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Oil capacity
|
3.30 litres (3.49 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
SAE 20W-50 |
|
Brake fluid
|
DOT 5 Silicone |
|
Spark plugs
|
NGK BPR5ES-11 |
|
Idle speed
|
1000 +/- 50 RPM |
|
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
|
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
|
Fork tube size
|
41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
