Harley-Davidson FLHXXX Street Glide Trike 20112011 Harley-Davidson FLHXXX Street Glide Trike specifications, pictures, reviews and rating |

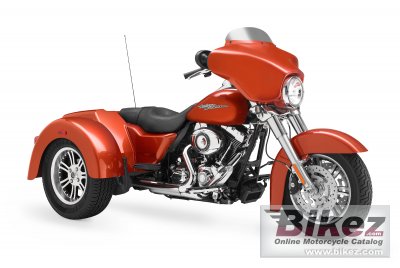

2011 Harley-Davidson FLHXXX Street Glide Trike. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The Street Glide® Trike brings two-wheel attitude with three-wheel comfort to the three-wheel category. The Harley-Davidson® Trike platform brings original-equipment design, quality and service to the three-wheel motorcycle segment. |
| General information | |
|---|---|
| Model | Harley-Davidson FLHXXX Street Glide Trike |
| Year | 2011 |
| Category | Custom / cruiser |
| Price as new | US$ 30499. MSRP depends on country, taxes, accessories, etc. |
| Rating | 2.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1688.0 ccm (103.00 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | Twin Cam 103. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters: two valves per cylinder. |
| Torque | 137.0 Nm (14.0 kgf-m or 101.1 ft.lbs) @ 3500 RPM |
| Compression | 9.6:1 |
| Bore x stroke | 95.3 x 111.0 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Pressurized, dry-sump with oil cooler |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multi-plate, wet |
| Driveline | Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 30/70 ratio. |
| Exhaust system | Two-into-One-into-Two chrome exhaust |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel, square-section backbone with twin downtubes |
| Rake (fork angle) | 26.0° |
| Trail | 100 mm (3.9 inches) |
| Front suspension | 41.3 mm telescopic, triple-circuit damping |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Air-adjustable shocks |
| Rear wheel travel | 75 mm (3.0 inches) |
| Front tire | MT90-B16 |
| Rear tire | 205/65-R16 |
| Front brakes | Single disc. ABS |
| Diameter | 299 mm (11.8 inches) |
| Rear brakes | Double disc. ABS |
| Diameter | 228 mm (9.0 inches) |
| Wheels | Black, 7-spoke Cast Aluminum |
| Physical measures and capacities | |
| Dry weight | 485.0 kg (1,069.2 pounds) |
| Weight incl. oil, gas, etc | 503.0 kg (1,108.9 pounds) |
| Seat height | 721 mm (28.4 inches) If adjustable, lowest setting. |
| Overall length | 2687 mm (105.8 inches) |
| Overall width | 1389 mm (54.7 inches) |
| Ground clearance | 119 mm (4.7 inches) |
| Wheelbase | 1691 mm (66.6 inches) |
| Fuel capacity | 22.71 litres (6.00 US gallons) |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Cool Blue Pearl, Merlot Sunglo/Vivid Black, Cool Blue Pearl / Vivid Black |
| Starter | Electric |
| Instruments | Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-spe |
| Light | 55-watt low beam, 60-watt high beam |
| Factory warranty | 24 months |
| Comments | Three wheel bike. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 11 Harley-Davidson FLHXXX Street Glide Trike discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
