General information |
|
Model name
|

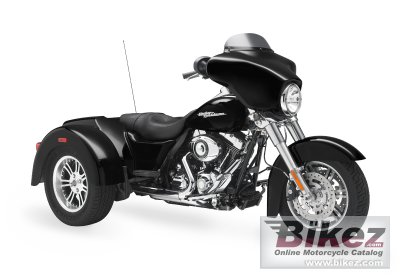

Harley-Davidson FLHXX Street Glide Trike |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 26999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
95.3 x 111.0 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Two-into-One-into-Two chrome exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel, square-section backbone with twin downtubes |
|
Rake (fork angle)
|
26.0° |
|
Front suspension
|
41.3 mm telescopic, triple-circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Enhanced handling |
|
Rear wheel travel
|
75 mm (3.0 inches) |
|
Front tire
|
MT90-B16 |
|
Rear tire
|
206/65-R16 |
|
Front brakes
|
Single disc. ABS |
|
Diameter
|
299 mm (11.8 inches) |
|
Rear brakes
|
Double disc. ABS |
|
Diameter
|
228 mm (9.0 inches) |
|
Physical measures and capacities |
|
Dry weight
|
485.0 kg (1,069.2 pounds) |
|
Weight incl. oil, gas, etc
|
503.0 kg (1,108.9 pounds) |
|
Seat height
|
679 mm (26.7 inches) If adjustable, lowest setting. |
|
Overall length
|
2687 mm (105.8 inches) |
|
Overall width
|
1379 mm (54.3 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1691 mm (66.6 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Red Hot Sunglo |
|
Starter
|
Electric |
