Harley-Davidson FLHXSE CVO Street Glide 20102010 Harley-Davidson FLHXSE CVO Street Glide specifications, pictures, reviews and rating |

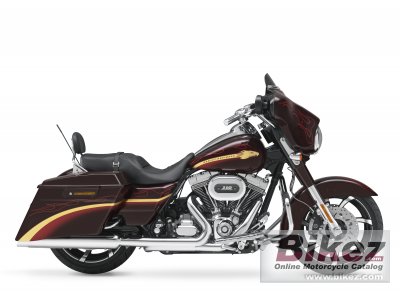

2010 Harley-Davidson FLHXSE CVO Street Glide. Picture credits - Harley-Davidson. Submit more pictures.
| Harley-Davidson's profilation of this bike |
| The 2010 CVO™ Street Glide® motorcycle is a tuned-up, tricked-out version of the popular Harley-Davidson bagger. Powered by the Screamin´ Eagle® Twin Cam 110™ engine, the CVO Street Glide packs serious power from the largestdisplacement V-Twin engine offered by Harley-Davidson. But this potent touring bike is also loaded with the sparkling chrome, electrifying paint and fresh custom-styling ideas that have defined the CVO programme for more than a decade. |
| General information | |
|---|---|
| Model name | Harley-Davidson FLHXSE CVO Street Glide |
| Year | 2010 |
| Category | Touring |
| Price as new | US$ 30999. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1800.0 ccm (109.84 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 156.0 Nm (15.9 kgf-m or 115.1 ft.lbs) @ 3750 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 101.6 x 111.1 mm (4.0 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Hydraulically actuated, 9-plate wet, with high performance spring |
| Exhaust system | Chrome, 2-1-2 exhaust with touring mufflers, |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded. |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3mm telescopic, with blow-by valve |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Hydraulic - adjustable |
| Rear wheel travel | 51 mm (2.0 inches) |
| Front tire | 130/70-B18 |
| Rear tire | 180/55-B18 |
| Front brakes | Double disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 367.0 kg (809.1 pounds) |
| Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall length | 2450 mm (96.5 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1630 mm (64.2 inches) |
| Fuel capacity | 22.70 litres (6.00 US gallons) |
| Oil capacity | 3.50 litres (3.7 US quarts) |
| Other specifications | |
| Color options | Candy Concord with Pale Gold Leaf Graphics, Spiced Rum with Gold Leaf Graphics; Tequilla Sunrise with Pale Gold Leaf Graphics |
| Starter | Electric |
| Comments | CVO means Custom Vehicle Operation |
