General information |
|
Model name
|

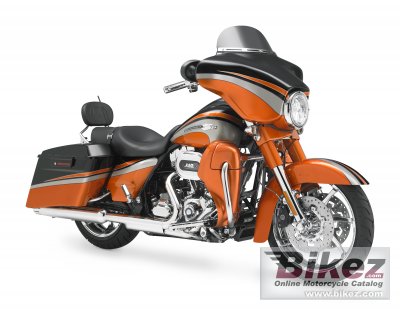

Harley-Davidson FLHXSE2 CVO Street Glide |
|
Model year
|
2011 |
|
Category
|
Touring |
| Price as new | US$ 32499. Euro 33295. UK £ 25590. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1802.7 ccm (110.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Twin Cam 110. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder. |
|
Torque
|
156.0 Nm (15.9 kgf-m or 115.1 ft.lbs) @ 4000 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
101.6 x 111.1 mm (4.0 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Hydraulically actuated, 9-plate, wet, with high performance spring. |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/68 ratio. |
|
Exhaust system
|
Chrome, 2-1-2 exhaust with touring mufflers, |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, with blow-by valve |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Hydraulic - adjustable |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
7-spoke, contrast chrome Agitator wheels |
|
Physical measures and capacities |
|
Dry weight
|
369.2 kg (814.0 pounds) |
|
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2443 mm (96.2 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1630 mm (64.2 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.50 litres (3.7 US quarts) |
|
Other specifications |
|
Color options
|
Kryptonite/Black Diamond, Black Diamond/Inferno Orange, Autumn Haze/Antique Gunstock, Black Diamond/Crimson Tag Graphics |
|
Starter
|
Electric |
|
Light
|
55-watt low beam, 120-watt high beam. |
|
Factory warranty
|
24 months. |
|
Comments
|
Limited edition model. CVO means Custom Vehicle Operation. |
