General information |
|
Model name
|

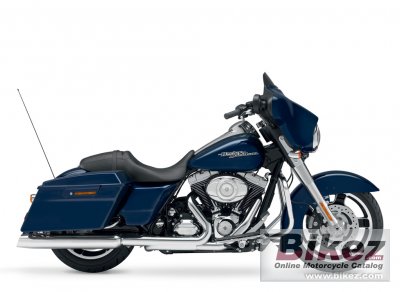

Harley-Davidson FLHX Street Glide |
|
Year of manufacture
|
2012 |
|
Type
|
Touring |
| Price as new | US$ 19499. Euro 22995. UK £ 17899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1688.0 ccm (103.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled Twin Cam 103™ with Integrated Oil-Cooler |
|
Torque
|
135.6 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3250 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.3 mm (3.9 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Multi-plate with diaphragm spring in oil bath |
|
Fuel consumption
|
5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
|
Greenhouse gases
|
129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
Chrome, 2-1-2 dual exhaust with tapered mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3 mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm. |
|
Rear wheel travel
|
51 mm (2.0 inches) |
|
Front tire
|
130/70-BW18 |
|
Rear tire
|
180/65-BW16 |
|
Front brakes
|
Double disc. 4-piston calipers. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Black, Slotted 5-Spoke Cast Aluminum |
|
Seat
|
Sculpted seat for added comfort and easier straddling |
|
Physical measures and capacities |
|
Dry weight
|
356.1 kg (785.0 pounds) |
|
Weight incl. oil, gas, etc
|
372.9 kg (822.0 pounds) |
|
Seat height
|
663 mm (26.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2413 mm (95.0 inches) |
|
Ground clearance
|
119 mm (4.7 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Big Blue Pearl, Ember Red Sunglo, Black Denim, Tequila Sunrise/H-D Orange |
|
Starter
|
Electric |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; tachometer with fuel, voltage, oil pressure and ambient air temperature gauges |
|
Electrical
|
Sealed, maintenance-free battery, 12V, 19-amp/hour, 270 cca |
|
Factory warranty
|
24 months, unlimited mileage. |
|
Comments
|
Sidecar option. Injection-molded hard saddlebags with colormatched latches; 26 cu. ft. volume. |
