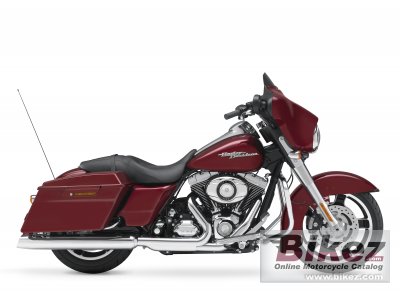

Harley-Davidson FLHX Street Glide 20102010 Harley-Davidson FLHX Street Glide specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| The redesigned Street Glide® is a bagger with hot-rod soul, with minimal trim and chrome, lowered suspension, and black slotted aluminum wheels. Inspired by the street, but still ready for the long road. |
| General information | |
|---|---|
| Model | Harley-Davidson FLHX Street Glide |
| Model year | 2010 |
| Category | Touring |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 1584.0 ccm (96.66 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 127.0 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3500 RPM |
| Bore x stroke | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. ESPFI |
| Fuel control | Overhead Valves (OHV) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | 9-plate, wet |
| Exhaust system | 2-1-2 chrome exhaust with dual mufflers and slash-down end caps |
| Chassis, suspension, brakes and wheels | |
| Frame type | Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded |
| Rake (fork angle) | 26.0° |
| Trail | 170 mm (6.7 inches) |
| Front suspension | 41.3mm telescopic, triple circuit damping |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Short, air-adjustable |
| Rear wheel travel | 51 mm (2.0 inches) |
| Front tire | 130/70-B18 |
| Rear tire | 180/65-B16 |
| Front brakes | Double disc. 4-piston fixed caliper |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 4-piston fixed caliper |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 355.0 kg (782.6 pounds) |
| Seat height | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall length | 2430 mm (95.7 inches) |
| Ground clearance | 125 mm (4.9 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 22.70 litres (6.00 US gallons) |
| Oil capacity | 3.50 litres (3.7 US quarts) |
| Other specifications | |
| Color options | Vivid Black, Scarlet Red, Brilliant Silver Pearl, Black Denim, Red Hot Sunglo |
| Starter | Electric |
| Comments | Black powder-coated engine with chrome treatment covers; “Batwing”, fork-mounted fairing with integrated side mirrors; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Passenger footpegs; Stainless steel, classic touring handlebars; One-piece, two-up Street Glide® classic seat; Lightly smoked, Electra Glide® low windshield; Injection-moulded GTX® saddlebags with locks; Harman-Kardon® Advanced Audio System; Cruise control; ABS as standard; New custom tail light |
