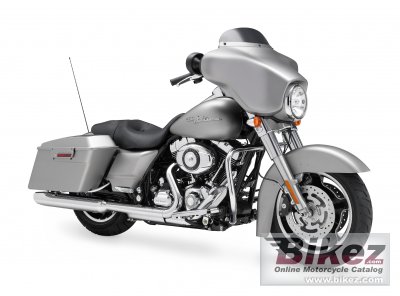

Harley-Davidson FLHX Street Glide 20092009 Harley-Davidson FLHX Street Glide specifications, pictures, reviews and rating |
| Harley-Davidson's profilation of this bike |
| A stylishly stripped-down dresser, the Street Glide features lowered rear suspension, a smoked mini-wind deflector, and a stylish trim at the bottom of the rear fender for a low, lean profile. A traditional “batwing” fairing holds the 40-watt Advanced Audio System by Harman-Kardon®. |
| General information | |
|---|---|
| Model | Harley-Davidson FLHX Street Glide |
| Year | 2009 |
| Category | Custom / cruiser |
| Rating | 4.0 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1584.0 ccm (96.66 cubic inches) |
| Engine type | V2, four-stroke |
| Torque | 131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Fuel system | Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Exhaust system | Two-into-One-into-Two chrome exhaust |
| Chassis, suspension, brakes and wheels | |
| Frame type | New mild steel, single spar rigid backbone with |
| Rake (fork angle) | 26.0° |
| Trail | 173 mm (6.8 inches) |
| Front suspension | 41.3mm telescopic, cartridge-style damping |
| Front wheel travel | 117 mm (4.6 inches) |
| Rear suspension | Enhanced handling |
| Rear wheel travel | 51 mm (2.0 inches) |
| Front tire | 130/80-B17 |
| Rear tire | 180/65-B16 |
| Front brakes | Double disc. ABS |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 355.0 kg (782.6 pounds) |
| Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall length | 2430 mm (95.7 inches) |
| Ground clearance | 119 mm (4.7 inches) |
| Wheelbase | 1625 mm (64.0 inches) |
| Fuel capacity | 22.70 litres (6.00 US gallons) |
| Other specifications | |
| Color options | Vivid Black, Black Pearl, Pewter Pearl, Dark Blue Pearl, Pewter Denim, Red Hot Denim; Red Hot Sunglo |
| Starter | Electric |
| Comments | Black powder-coated engine with chrome treatment covers; “Batwing”, forkmounted fairing with integrated side mirrors; Chrome, low-profile fuel tank console; Clear-lens reflector-optics headlamp; Full-length height adjustable rider footboards; Passenger footpegs; New redesigned rider footboard supports for increased lean angle; Stainless steel, classic touring handlebars; One-piece, two-up Street Glide® classic seat; Lightly smoked, Electra Glide® low windshield; Injection-moulded GTX® saddlebags with locks; Harman-Kardon® Advanced Audio System; Cruise control; |
| Modifications compared to previous model | Retuned front and rear suspension for enhanced handling |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Harley-Davidson FLHX Street Glide discussion group or the general Harley-Davidson discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Harley-Davidson. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Harley-Davidson FLHX Street Glide for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Harley-Davidson bike | |
Reliability for the 2009 Harley-Davidson FLHX Street Glide:  (87.2 out of 100)Click here for complete rating. |
|
