General information |
|
Model
|

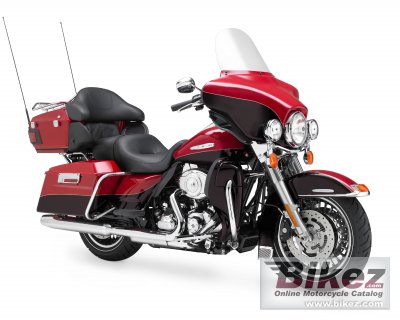

Harley-Davidson FLHTK Electra Glide Ultra Limited |
|
Year model
|
2011 |
|
Type
|
Touring |
| Price as new | US$ 23699. Euro 27495. UK £ 21200. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1690.0 ccm (103.12 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Air-cooled, Twin Cam 103. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder. |
|
Torque
|
138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 3500 RPM |
|
Compression
|
9.6:1 |
|
Bore x stroke
|
98.4 x 111.1 mm (3.9 x 4.4 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressurized, dry-sump with oil cooler |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Driveline
|
Primary Drive: Chain, 34/46 ratio. Final Drive: 32/68 ratio |
|
Exhaust system
|
2-1-2 chrome exhaust with dual mufflers and taper end caps |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded. |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
170 mm (6.7 inches) |
|
Front suspension
|
41.3mm telescopic, triple circuit damping |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. 4-piston fixed caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 4-piston fixed caliper. Optional ABS. |
|
Diameter
|
300 mm (11.8 inches) |
|
Wheels
|
Contrast Chrome, 28-spoke Cast Aluminum |
|
Physical measures and capacities |
|
Dry weight
|
389.2 kg (858.0 pounds) |
|
Seat height
|
739 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2525 mm (99.4 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1635 mm (64.4 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Oil capacity
|
3.80 litres (4.02 US quarts) |
|
Other specifications |
|
Color options
|
Vivid Black, Cherry Red Sunglo/Merlot Sunglo, Cool Blue Pearl/Vivid Black, Dark Candy Root Beer/Light Candy, Root Beer, Psychedelic Purple/Vivid Black, Apple Green/Vivid Black |
|
Starter
|
Electric |
|
Instruments
|
Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-spe |
|
Electrical
|
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca battry. Charging: Three-phase, 50-amp system |
|
Factory warranty
|
24 months. |
