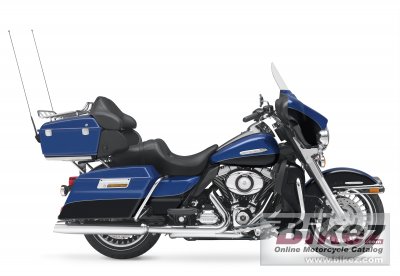

2010 Harley-Davidson FLHTK Electra Glide Ultra Limited. Picture credits - Harley-Davidson.
Submit more pictures .
Harley-Davidson's profilation of this bike
A step up from the popular Harley-Davidson® Ultra Classic™ Electra Glide® motorcycle, the Ultra Limited features items that have previously only been offered as accessories on regular-production Harley-Davidson Touring models. The package starts with a Twin Cam 103™ engine that delivers 11 percent more torque than the Twin Cam 96™ engine offered on standard Touring models, for a significant upgrade in performance.
General information
Motorcycle name
Harley-Davidson FLHTK Electra Glide Ultra Limited
Year
2010
Category
Touring
Rating
3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike.
Engine and transmission
Displacement
1690.0 ccm (103.12 cubic inches)
Engine type
V2, four-stroke
Torque
136.0 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 3500 RPM
Compression
9.6:1
Bore x stroke
98.4 x 111.1 mm (3.9 x 4.4 inches)
Valves per cylinder
2
Fuel system
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Fuel control
Overhead Valves (OHV)
Cooling system
Air
Gearbox
6-speed
Transmission type
Belt (final drive)
Clutch
9-plate, wet
Exhaust system
2-1-2 chrome exhaust with dual mufflers and taper end caps
Chassis, suspension, brakes and wheels
Rake (fork angle)
26.0°
Trail
170 mm (6.7 inches)
Front suspension
41.3mm telescopic, triple circuit damping
Front wheel travel
117 mm (4.6 inches)
Rear suspension
Air-adjustable
Rear wheel travel
76 mm (3.0 inches)
Front tire
130/80-B17
Rear tire
180/65-B16
Front brakes
Double disc. 4-piston fixed caliper
Diameter
300 mm (11.8 inches)
Rear brakes
Single disc. 4-piston fixed caliper
Diameter
300 mm (11.8 inches)
Physical measures and capacities
Dry weight
400.0 kg (881.8 pounds)
Seat height
745 mm (29.3 inches) If adjustable, lowest setting.
Overall length
2525 mm (99.4 inches)
Ground clearance
130 mm (5.1 inches)
Wheelbase
1635 mm (64.4 inches)
Fuel capacity
22.70 litres (6.00 US gallons)
Oil capacity
3.50 litres (3.7 US quarts)
Other specifications
Color options
Scarlet Red/Vivid Black, Vivid Black/Black Ice Pearl, Flame Blue Pearl/Vivid Black
Starter
Electric
Comments
Blacked-out engine with chrome accents; Premium Tour-Pak™ luggage rack
with upgraded luggage liners; Adjustable air-ride suspension; Full-length rider
footboards; Stainless steel, classic touring handlebars; One-piece, two-up,
Electra Glide® Classic seat; Clear Lexan® windshield; Heated hand grips; 12-
volt power supply; Mid-frame air deflectors; New gauges with ‘Titanium face’
appearance; Harman-Kardon® Advanced Audio System; Intercom; Cruise control;
ABS as standard
